AppWatch for Windows

Every packet has
a process.

AppWatch connects live network activity to the Windows application that created it. Inspect TCP, UDP and QUIC traffic at process level, with optional HTTP(S) detail when you need to look deeper.

Platform
Windows 10 / 11
Interface
Rust + egui
Storage
Local SQLite
Attribution pipeline local capture
  1. 01
    packetLocal endpoint
  2. 02
    kernel tableProcess ID
  3. 03
    attributedApplication

Traffic stays observable at network level even when payload inspection is unavailable.

The desktop app

One view from process to packet.

Select a running application to see its active connections, packet counts and transfer activity as they change.

Capture online AppWatch / all processes

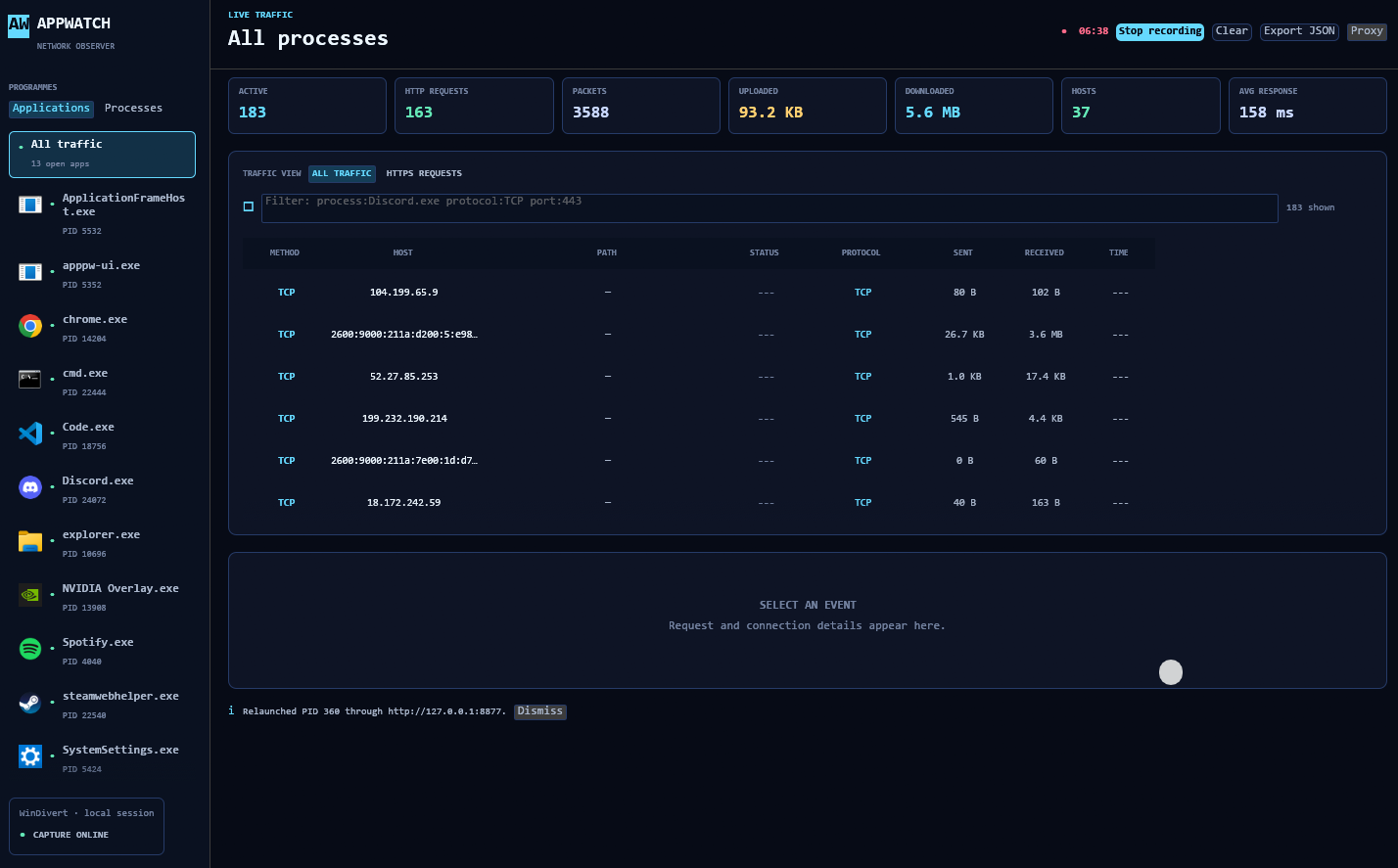

AppWatch showing live per-process network traffic, transfer totals, connections and running Windows applications
Live traffic view. Open the image for the full-size interface.

Observation layers

Useful detail, without a cloud dependency.

Process attribution

Connect TCP, UDP and QUIC activity to the responsible application or process.

PID → APP

Live measurements

Follow active connections, packet counts and upload and download usage as they change.

RX / TX

Optional HTTP(S) inspection

Relaunch supported applications through a local proxy to inspect requests and responses.

:8877

Local history

Keep observed traffic in SQLite for later review without sending it to a remote service.

SQLite

Capture model

Two paths, one observer.

WinDivert handles system-wide packet capture and process mapping. Deeper HTTP(S) inspection is a separate, opt-in path through AppWatch’s local proxy.

RusteguiTokioWinDivertHyperSQLite
Network viewdefault
ApplicationWinDivertProcess map

TCP · UDP · QUIC

Request viewopt-in
Relaunched appLocal proxyRemote server

HTTP · HTTPS

First capture

From launch to live traffic.

Packet monitoring works without the proxy. Complete the final two steps only when you need HTTP(S) request detail.

  1. 01

    Run as administrator

    Allow AppWatch to capture TCP, UDP and QUIC packets.

  2. 02

    Choose a process

    Follow its connections and live transfer activity.

  3. 03

    Trust the CA if needed

    Use Proxy > Trust HTTPS certificate... for HTTPS inspection.

  4. 04

    Relaunch through the proxy

    Route the target through 127.0.0.1:8877.

Requirements

Ready on Windows.

Operating system
Windows 10 / 11
Packet capture
Administrator access
Build from source
Rust toolchain

Application detection

Best-effort runtime support.

When relaunching an application, AppWatch looks for Chromium, Electron, CEF, Qt WebEngine and WebView2 runtimes, then applies the appropriate proxy flags when recognised.

Current limits

What stays encrypted.

HTTP/3 and QUIC payloads cannot currently be decrypted. Some applications may ignore proxy configuration; other protocols remain visible at network level, but their payloads are not decoded.

Build it yourself

Four commands to a release build.

Clone the repository and build the Rust workspace with Cargo.

git clone https://github.com/bivorzk/AppProcessWatcher.git
cd AppProcessWatcher
cargo build --release
cargo run --release -p apppw-ui

Current release · v0.2

See what is using the wire.

Get the newest Windows build and release notes from GitHub.
